Results

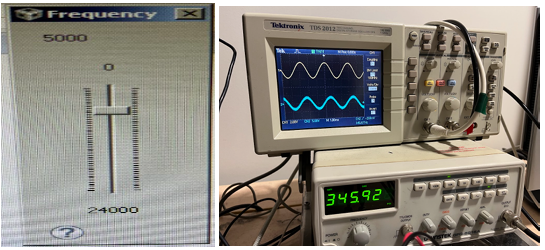

Notch At 5Khz - Before
It can be seen the yellow and blue ones (yellow - original sine wave, blue - with notch filter applied), are the same with the blue one slightly higher in amplitude due to thte filter characteristics, but overall is unchanged in terms of having a degraded amplitude.
Notch at 5Khz
The blue signal is killed off since we set the frequency dial on the function generator to be at the notch frequency.
After Notch at 5kHz
The Blue signal returns back to its original amplitude

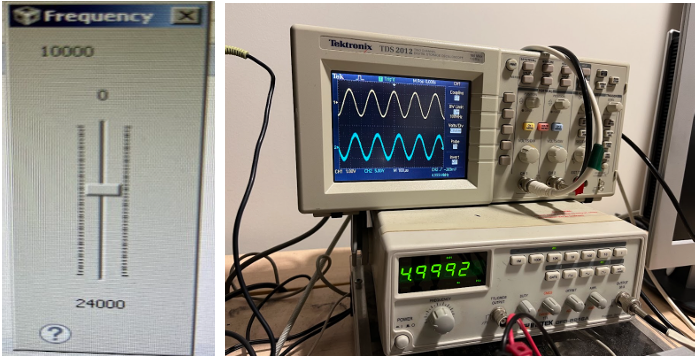

Before 10KHz
Now the notch filter is set at 10Khz

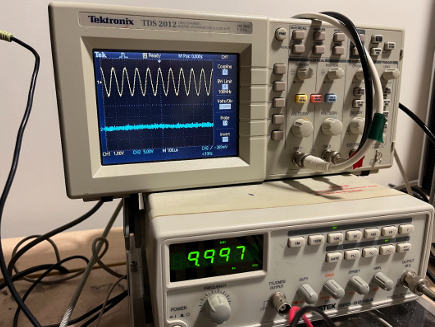

Notch at 10Khz
The blue signal is killed off when the function generator is set at approximately 10kHz.
After Notch at 10Khz
The signal returns to its original amplitude after the notch frequency
